Air Compressors

AC1-HE02-05M1
Compressor Pump:
Quality single stage compressor
Stainless-steel braided discharge hose · Oil lubricated aluminum crankcase
Aluminum head for heat dissipation · Cast iron cylinder · Canister inlet air filter
Motor:
120V single-phase 60-Hz. motor with 15-amp plug
Thermal overload motor protection
Frame: Compact and portable twin tank design · Powder coated steel frame design
5-gallon powder coated tank assembly · Protective pump/motor housing
Rubber handle for cushioned grip · Rubber isolators
Components: Regulator and two gauges for tank and outlet pressure
Drain valves and pressure relief valve · Start/stop control set at 95 to 125-PSI
Quick connect fittings
AM1-PR07-08M
Compressor Pump:
Quality cast iron single stage compressor · Stainless-steel braided discharge
Splash lubricated cast iron crankcase to extend the hours of performance
Cast iron head for heat dissipation · Large canister intake filter
Engine:
Industrial Subaru OHC engine · Cable throttle control to conserve fuel
Frame:
Powder coated 8-gallon twin tank receivers · 3/16-inch base plate to reduce vibration · 14-gauge powder coated two-piece belt guard with 1/4-turn release for quick access to belts · Convenient lifting handles · Pneumatic tire with tube and steel hub
Components: Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 12-inch flywheel for extra cooling and longer life · Quality pilot valve unloader · Belt tightening system pulls engine straight to ensure constant belt alignment

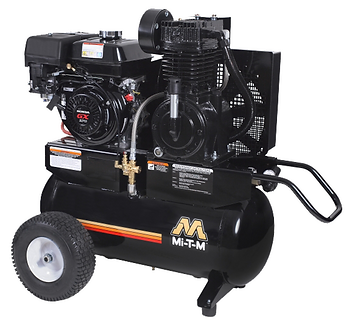

AM2-PH09-20M
Compressor Pump:
Quality cast iron two stage compressor with venting system for reduced crankcase temperature and pressure · Splash lubricated cast iron crankcase to extend the hours of performance · Cast iron head and cylinder for extended durability · Large canister intake filter · Stainless-steel braided discharge hose
Engine:
Industrial Honda OHV engine (electric start optional) · Engine oil drain
Pneumatic idle control to conserve fuel
Frame:
Powder coated ASME coded 20-gallon receiver tank · 14-gauge powder coated two-piece belt guard with 1/4-turn release for quick access to belts
Convenient lifting handle · Two pneumatic tires with tubes and steel hubs
Components:
Regulator and two gauges for tank and outlet pressure · 16.5-inch fly wheel for extra cooling and longer life · Manual drain valves for proper maintenance · Belt tightening system pulls engine straight to ensure constant belt alignment

ACS-23175-80VM
Compressor Pump:
Quality cast iron two stage compressor with venting system for reduced crankcase temperature and pressure · Splash lubricated cast iron crankcase to extend the hours of performance · Cast iron head and cylinder for extended durability · Stainless-steel braided discharge hose · Oil level sight indicator
Motor:
Low RPM industrial motor
Frame:
Powder coated ASME coded 80-gallon receiver tank · 3/16-inch base plate to reduce vibration
14-gauge powder coated totally enclosed belt guard · Fly wheel for extra cooling and longer life
Components:
ASME safety valves · Pressure gauge · Belt tightening system pulls motor straight to ensure constant belt alignment · Intake filter/silencer · Tank shut-off valve

ABS-14S-B
Compressor Pump:
Quality cast iron two stage compressor with venting system · Splash lubricated cast iron crankcase · Cast iron head and cylinder · Stainless-steel braided discharge hose
Engine:
Industrial Subaru OHC engine (Electric start standard - battery and cables not included) · Cable throttle control to conserve fuel
Frame:
3/16-inch base plate to reduce vibration · 14-gauge powder coated totally enclosed belt guard · Tabbed design offers flexible installation
Components: Regulator and two gauges for tank and outlet pressure · ASME safety valves · Belt tightening system pulls engine straight to ensure constant belt alignment · 16.5-inch fly wheel for extra cooling and longer life · Tank shut-off valve
